Building the Ultimate E-MTB: The 500W Hub Motor + 1500W Controller + 960Wh Battery Golden Combo

Green commuting and off-road weekends have pushed pedal-assist bikes — and especially the electric mountain bike (e-MTB) — from niche gadget to dream setup for a huge slice of US riders. But a truly great electric build lives or dies on one thing: how well the three-electric system (motor, controller, battery) is matched.

Below is a deep dive into a golden 48V drivetrain we've been testing: a 500W rear hub motor, a 1500W dual-protocol controller, and a 960Wh battery. Whether you're building an e-MTB, upgrading a cargo bike, or spec'ing an electric recumbent trike, this stack is a benchmark worth knowing.

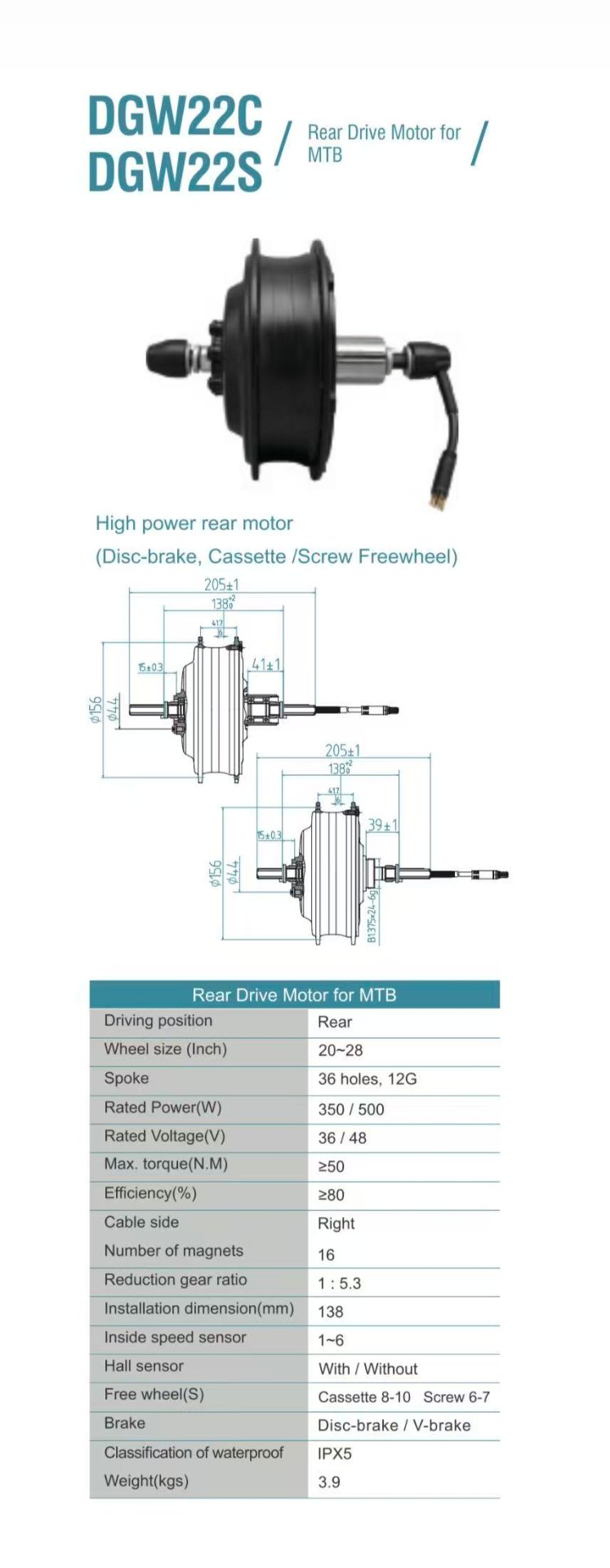

Core 1 — The Muscle: DGW22C / DGW22S 500W Rear Hub Motor

Purpose-built for MTB frames, this rear hub motor punches well above its weight in both structural engineering and real-world numbers.

• High torque, high efficiency — max torque ≥50 N·m with a 1:5.3 reduction ratio for strong launches and confident climbing; ≥80% efficiency turns more of your battery into forward motion instead of heat
• Wide compatibility — fits 20" to 28" wheels with a standard 138 mm dropout spacing; runs either a Cassette 8–10 speed or Screw 6–7 speed freewheel, and works with disc or V-brakes
• All-weather build — IPX5 water resistance shrugs off rainy commutes, wet trails, and road spray
• Reasonable weight — 3.9 kg for the whole rear-drive unit, easy to hide behind a chainstay

Core 2 — The Brains: CTMKG 1500W Dual-Protocol Controller

If the motor is the muscle, the controller is the brain. The CTMKG lifts the ceiling of the whole system.

• Massive power headroom — the motor is rated at 500W, but the controller can push up to 1500W peak, so steep climbs and hard launches get the current they need without stalling
• Modern comms — supports both UART and CAN bus, so it talks cleanly to premium color displays and smart apps for fine-tuned assist curves
• Featherweight & certified — only ~499 g, and carries EN 13849 (safety-related parts), RoHS, and CE certifications
• Bad-weather ready — IPX6 rated for heavy rain and jet spray, not just drizzle

Core 3 — The Endurance: TAKE-E GX 48V 20Ah Battery

Range anxiety is the number-one complaint from US e-bike riders, and the TAKE-E GX is built specifically to make it go away.

• 960 Wh total capacity — 48V × 20Ah, plenty for long backcountry days and multi-hour commutes on a single charge
• IPX6 sealed pack — happy in mud, rain, and puddle spray
• Balanced 4.7 kg weight — impressively low for a 20Ah pack, which matters when it's mounted on a rack or downtube

The Golden Trio at a Glance

• DGW22C / DGW22S hub motor — 48V / 500W, ≥50 N·m torque, 1:5.3 reduction, 3.9 kg, IPX5, disc/V-brake, Cassette/Screw freewheel
• CTMKG controller — 36–48V input, 1500W peak, UART + CAN, ~499 g, EN 13849 + RoHS + CE, IPX6
• TAKE-E GX battery — 48V / 20Ah (960 Wh), 4.7 kg, IPX6, perfect match for the 48V motor + controller

Run the whole stack at 48V. That's where the 500W motor makes its cleanest torque, the CTMKG stays in its efficiency sweet spot, and the 20Ah battery delivers its best real-world range.

Why This Matters for Recumbent Trikes and E-Trikes

This isn't just an e-MTB story. The same 48V golden trio is a near-ideal drivetrain for an electric recumbent trike, because three wheels plus a rider plus a cargo basket plus (sometimes) a dog trailer is a lot of rolling weight that begs for real torque and real range.

• Torque wins on hills — ≥50 N·m from a rear hub means loaded trikes still climb without wheel spin
• Headroom keeps things cool — a 1500W-capable controller running a 500W motor rarely gets hot, which is the #1 killer of hub-motor lifespan
• 960 Wh handles the long stuff — rail-trail day trips, farmers-market runs with groceries, or a full afternoon towing the dog trailer
• IPX6 across the electronics — the same weatherproofing that matters on an MTB matters even more on a daily-driver trike

Buying & Upgrade Recommendations

If you're building a new e-MTB from a donor frame, or upgrading an aging electric trike, resist the temptation to mix voltages. Commit to a 48V platform end-to-end. You'll get the fullest torque out of the 500W motor, the highest efficiency out of the CTMKG controller, and the most usable miles out of the TAKE-E GX pack. It's one of the most competitive high-end e-bike conversion recipes on the market right now.
